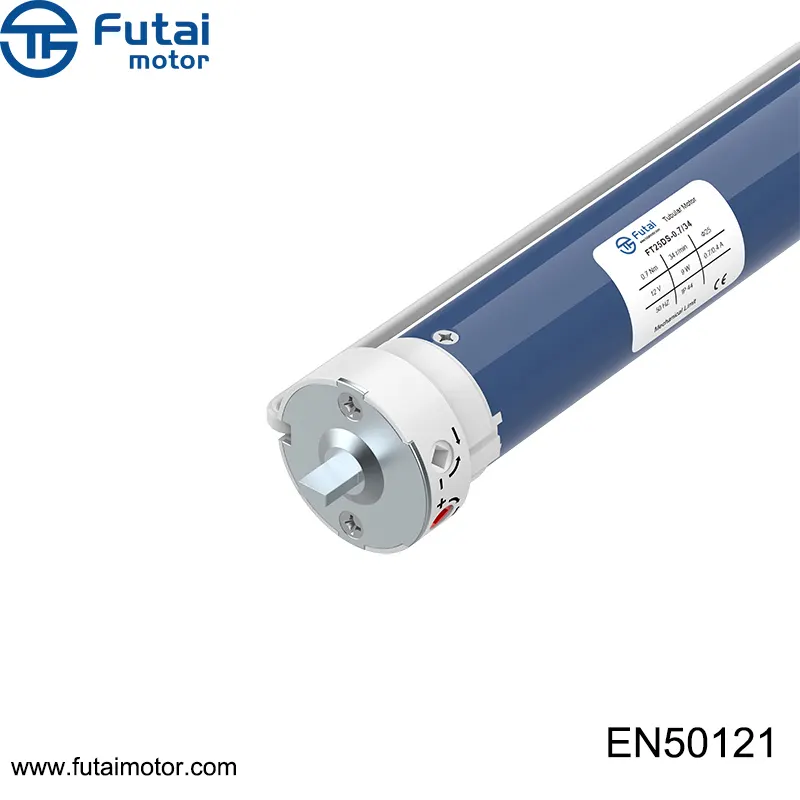

EN50121 Approved Railway Roller Blinds Motor

The EN50121 Approved Railway Roller Blinds Motor by FT Motor is a high - quality tubular motor. We designed it for electric roller blinds in railway use. It is available in 12V and 24V models. Measuring only 25mm in diameter, it has a slim and compact form, and is equipped with a durable copper - threaded screw rod and a highly precise mechanical stroke mechanism.

Specification

Model	Rated Torque	Rated Speed	Tube Diameter	Rated voltage	Rated  Power	Rated  Current	Protection  Degree	Max Number  of Turns	length L1/L2
	N.m	rpm	mm	V	W	A		Turn	mm
FT25DS	0.7	34	25	12/24	9	0.8/04	IP44	22	310/300
FT25DS	1.5	28	25	12/24	12	1/04	IP44	22	310/300

Feature And Application

The EN50121 Approved Railway Roller Blinds Motor is equipped with a copper - threaded screw rod. This design enhances its mechanical reliability and prolongs its service life. With its ability to work with dual voltages (12V/24V), it can be flexibly incorporated into the power systems of rail vehicles.

The EN50121 certification guarantees that the motor strictly meets the EMC requirements. It keeps the radiated emissions (9 kHz–6 GHz) within the specified limits and reduces the conducted interference on power lines. Additionally, it is highly resistant to RF fields and electrical fast transients (EFT).

These features make it an ideal choice for train compartments, station platforms, and control rooms. In these places, electromagnetic interference may endanger safety - critical systems. For instance, in high - speed trains, the motor enables roller blinds to operate smoothly without generating EMI that might interfere with the communication between the train and track side signaling equipment.

Customized EN50121 Approved Railway Roller Blinds Motor has been used in many European projects, including metro systems and intercity rail networks.a

Product Details

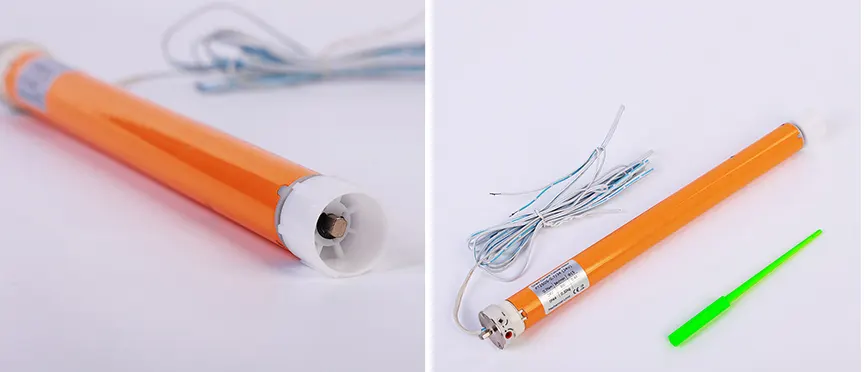

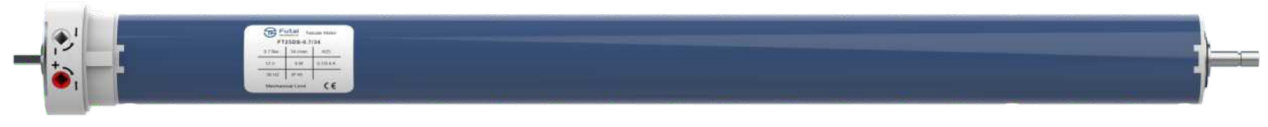

Profile Display

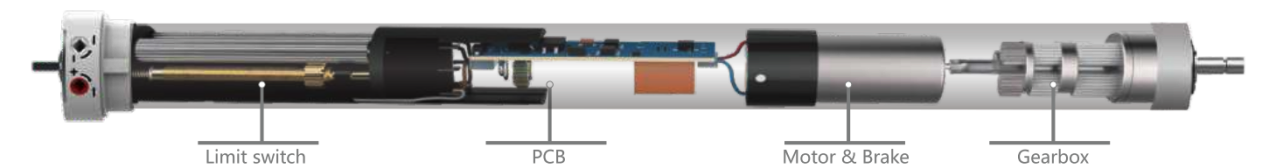

Inner Structure Picture

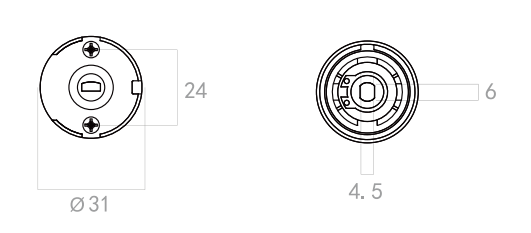

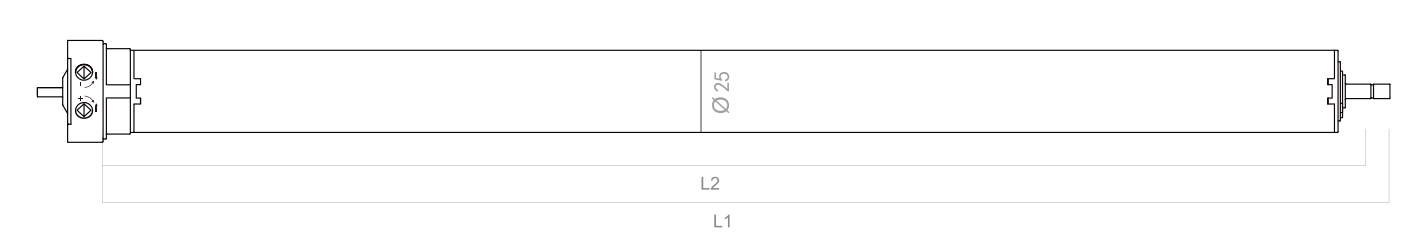

Dimension Drawing
