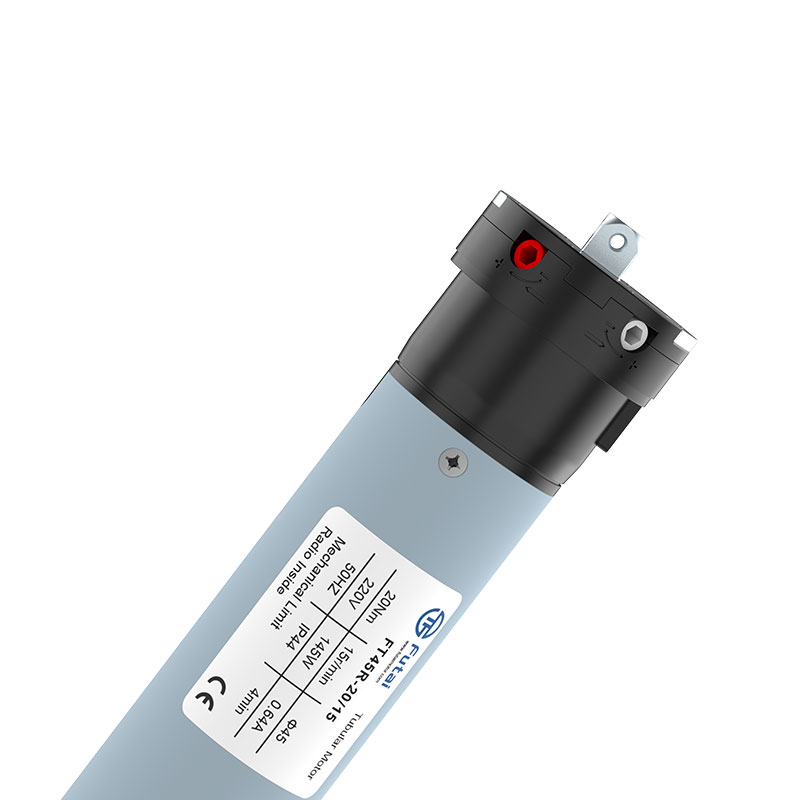

45mm Mechanical Radio Tubular Motor
  • 45mm Mechanical Radio Tubular Motor - 0 45mm Mechanical Radio Tubular Motor - 0

45mm Mechanical Radio Tubular Motor

FT Motor is a reputable manufacturer and would like to offer you a 45mm Mechanical Radio Tubular Motor of the highest caliber. We promise to provide you with the best after-sale support and prompt delivery.

Send Inquiry

Product Description

Among many motor products, the 45mm Mechanical Radio Tubular Motor is a unique and noteworthy built-in receiver type tube motor. This motor has gained popularity among users due to its compact design, simple wiring, and installation processes. It features a mechanical travel design, making it more stable and reliable to use. In terms of safety, the 45mm Mechanical Radio Tubular Motor is equipped with 4-minute thermal protection to prevent motor overheating and ensure safe operation. This motor is widely used in various scenarios, such as electric lifting curtains, metal rolling shutters, and more.In order to meet the needs of the majority of users, FT Motor provides a variety of specifications such as 20N, 40N, 50N . These specifications vary slightly in performance, but all have the advantage of a built-in receiver. Users can choose the appropriate specifications according to their actual needs.


45mm Mechanical Radio Tubular Motor Parameter (Specification)

Model

Rated Torque

Rated Speed

Tube Diameter

Rated

voltage

Rated

Power

Rated

Current

Protection

Degree

Max Number

of Turns

length

L1/L2

Working Time



N.m

rpm

mm

V

W

A



Turn

mm

Minute

FT45R

20

15

45

230

145

0.64

IP44

22

597/586

4

FT45R

40

15

45

230

198

0.86

IP44

22

597/586

4

FT45R

50

12

45

230

205

0.89

IP44

22

597/586

4


45mm Mechanical Radio Tubular Motor Feature And Application

FT Motor offers custom 45mm Mechanical Radio Tubular Motor to meet a wide range of special requirements. Whether you want a motor with special features or a unique look, we can do it. Our team of engineers will assess the feasibility according to your specific needs, and then tailor the most suitable motor products for you, so that you have a unique motor.


Our motors are known for high performance and safety, and 45mm Mechanical Radio Tubular Motor not only have excellent performance, but also ensure safe use. Whether you use it in the home, commercial or industrial sector, this motor can handle it.


Our customized service gives you more flexibility when choosing a motor, and you don't have to worry about finding the right one. We can always provide you with a satisfactory solution.


If you have any questions or special needs in the process of buying a motor, please feel free to contact us. Our team will be at your service to provide professional and thoughtful advice. I believe that here, you can find the most suitable motor products for you. Look forward to working with you to create a better future!


45mm Mechanical Radio Tubular Motor Details

Profile Display


Inner Structure Picture


Dimension Drawing


Product Details
